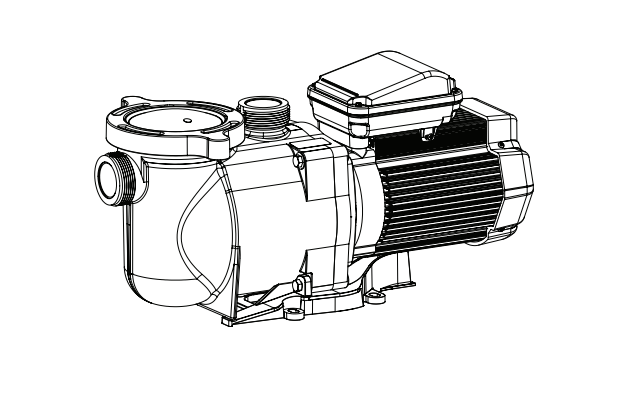

HIGH PERFORMANCE PUMP

Pump Overview
The perfect choice for all types of pools, the SuperFlo® High Performance Pump was specifically designed to be your best choice for a variety of inground pools.
Thick walled body parts, a heavy duty 56 square flange motor, and highly engineered hydraulics make this rugged and tested design perfect for any pool, spa, water feature, or fountain.
All pumps from Pentair incorporate innovative hydraulic engineering that has been refined for over 40 years. Compact, rugged, and easy to maintain, the SuperFlo pump will deliver years of reliable service.

General Features
• Extremely quiet operation
• Unionized fittings (1.5” and 2”) for simple replacement
• Cam and Ramp™ Lid for easy cleaning and maintenance
• Heavy-duty, high service factor 56 square flange motor for long life
• Integral volute and pot reduce hydraulic noise
• See-through lid permits easy inspection of strainer basket
• 115 volt or 230 volt models available
• 1/2 HP to 2 1/2 HP configurations to accommodate a wide range of applications
• Self-priming for quick, easy start-up

INSTALLATION
Only a qualified plumbing professional should install the SuperFlo® High Performance Pump. Refer to “Important Safety Instructions” on pages ii-iii for additional installation and safety information.

Location
Be sure the pump location meets the following requirements:

1. Install the pump as close to the pool or spa as possible. To reduce friction loss and improve efficiency, use short, direct suction piping returns.
2. Install a minimum of 5 feet (1.5 m) from the inside wall of the pool and spa. Canadian installations require a minimum of 9.8 feet (3 m) from pool water level.
3. Install the pump a minimum of 3 feet (0.9 m) from the heater outlet.
4. Do not install the pump more than 10 feet (3 m) above the water level.
5. Install the pump in a well ventilated location protected from excessive moisture (i.e., rain
gutter downspouts, sprinklers, etc.)
6. Install the pump with a rear clearance of at least 3 inches (7.6 cm) so that the motor can be removed easily for maintenance and repair.

Piping
1. For improved pool plumbing, it is recommended to use a larger pipe size. When installing the inlet and outlet fittings (male adaptors), use thread sealant.
2. Piping on the suction side of the pump should be the same or larger than the return line diameter.
3. Plumbing on the suction side of the pump should be as short as possible.
4. For most installations Pentair recommends installing a valve on both the pump suction and return lines so that the pump can be isolated during routine maintenance. However, we also recommend that a valve, elbow or tee installed in the suction line should be no closer to the front of the pump than five times the suction line diameter. Example: A 2 inch pipe requires a 10 inch (25 cm) straight run in front of the suction inlet of the pump. This will help the pump prime faster and last longer.
Note: DO NOT install 90° elbows directly into the pump inlet or outlet.

Fittings and Valves
1. Do not install 90° elbows directly into pump inlet.
2. Flooded suction systems should have gate valves installed on suction and discharge pipes for maintenance, however, the suction gate valve should be no closer than five times the suction pipe diameter as described in this section.
3. Use a check valve in the discharge line when using this pump for any application where there is significant height to the plumbing after the pump.
4. Be sure to install check valves when plumbing in parallel with another pump. This helps prevent reverse rotation of the impeller and motor.
