The Max-E-ProXF™ was developed using the most advanced computer-aided design and manufacturing (CAD/CAM) plus Computational Fluid Dynamics (CFD) and Finite Element...
Couldn't load pickup availability

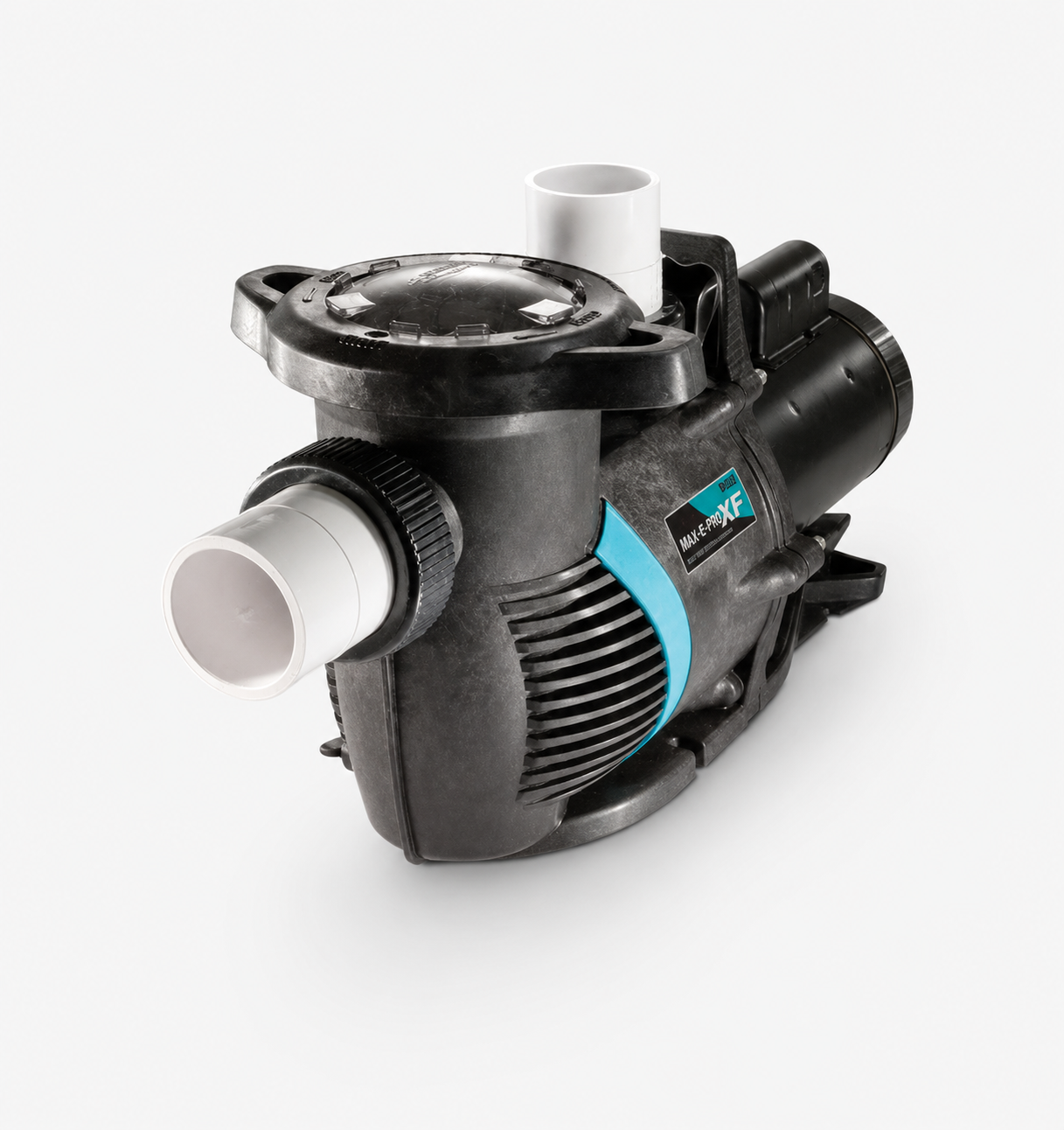

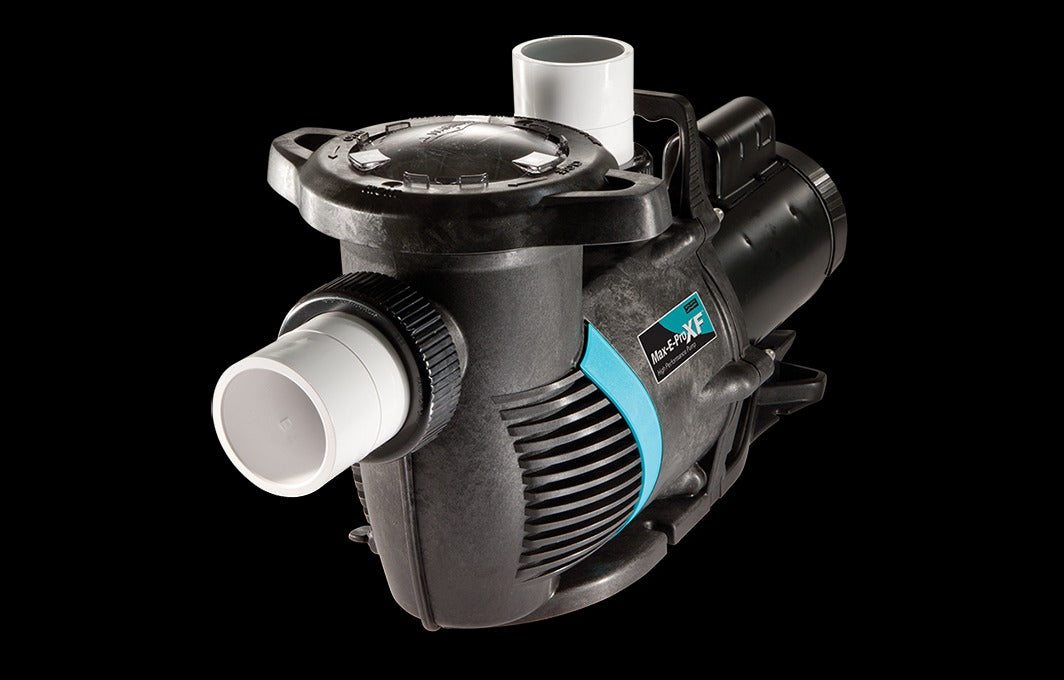

The Max-E-ProXF™ was developed using the most advanced computer-aided design and manufacturing (CAD/CAM) plus Computational Fluid Dynamics (CFD) and Finite Element Analysis (FEA). The proprietary impeller design delivers a higher level of precision concentricity for increased efficiency. The proprietary hydraulic isolator smooths the priming water at start-up and also smooths the flow inside the volute, raising the efficiency even higher. With outstanding performance from both a maximum-flow and mean-flow perspective, the Max-E-ProXF is an ideal choice for residential pools with water features such as slides and waterfalls, as well as commercial pools.
| Item # | Voltage | Full Load Amps | HP | SF | SFHP | Primary Listings and Certifications | Port Size (NPT) | Carton Wt. (Lbs) | Curve Key |
|---|---|---|---|---|---|---|---|---|---|
|
022032
|
208-230
|
11.1-9.5
|
2
|
1.3
|
2.6
|
UL, NSF
|
2.5" or 3"
|
57
|
D
|
|
022033
|
208-230
|
14.6-12.7
|
3
|
1.15
|
3.45
|
UL, NSF
|
2.5" or 3"
|
61
|
B
|
|
022034
|
208-230
|
20.0-18.8
|
5
|
1
|
5
|
UL, NSF
|
2.5" or 3"
|
67
|
|
