QUIETLY POWERFUL, BRILLIANTLY EFFICIENT

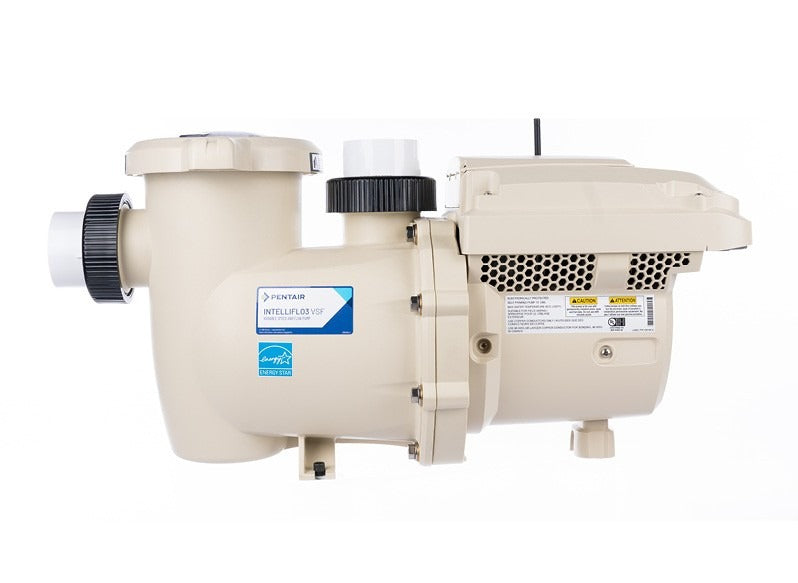

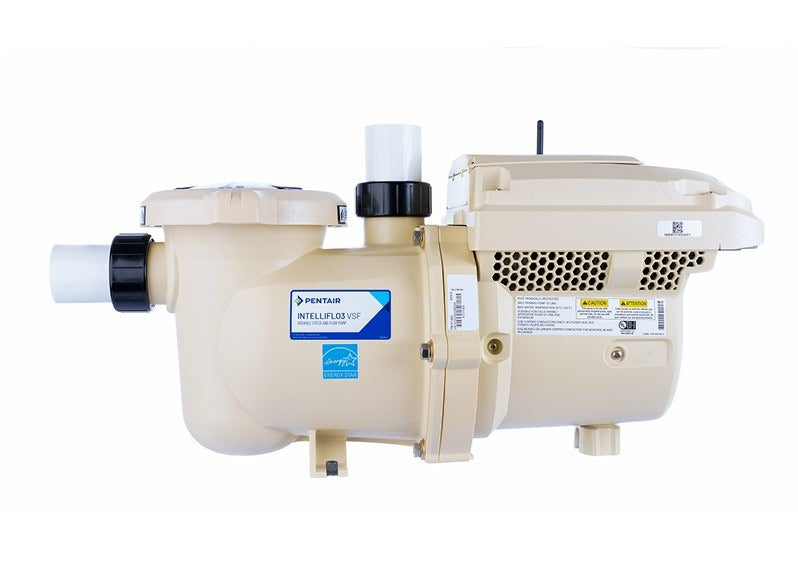

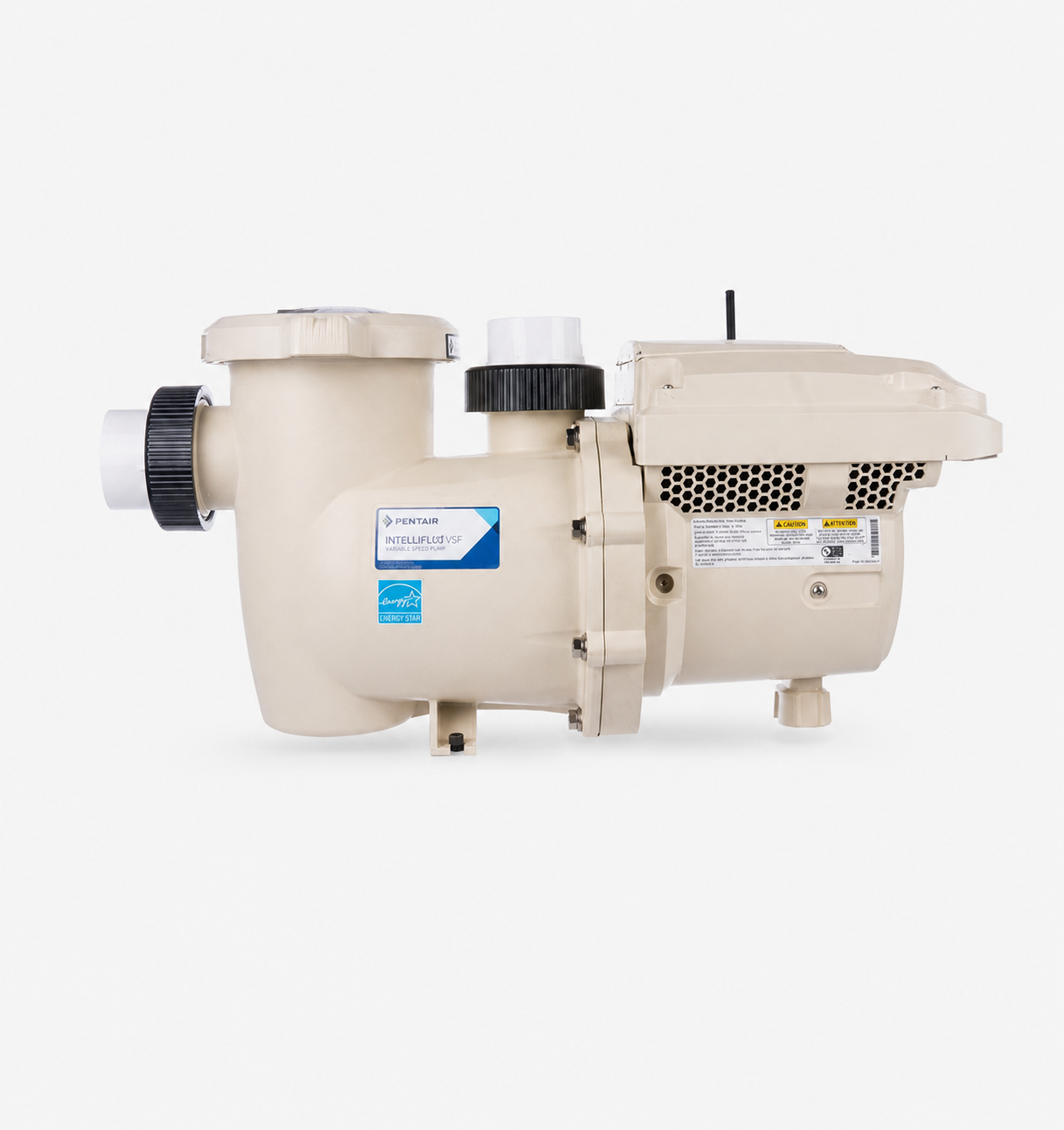

The award-winning IntelliFlo3 VSF Pump is the pinnacle of new Pentair Pool technology, connecting with the Pentair Pool and Pro apps to allow pool owners and professionals to monitor and control anytime, anywhere. With the ability to connect two additional pool equipment products with Wi-Fi enabled automation, the IntelliFlo3 pump boasts innovative flow technology and a quiet operation, representing the future of efficient pool maintenance and ownership.
Roughly 20 years ago, Pentair brought the variable speed and flow technology to the U.S. - a transformative innovation that remains the cornerstone of the pool industry. And that innovation continues today with the IntelliFlo3 pump.

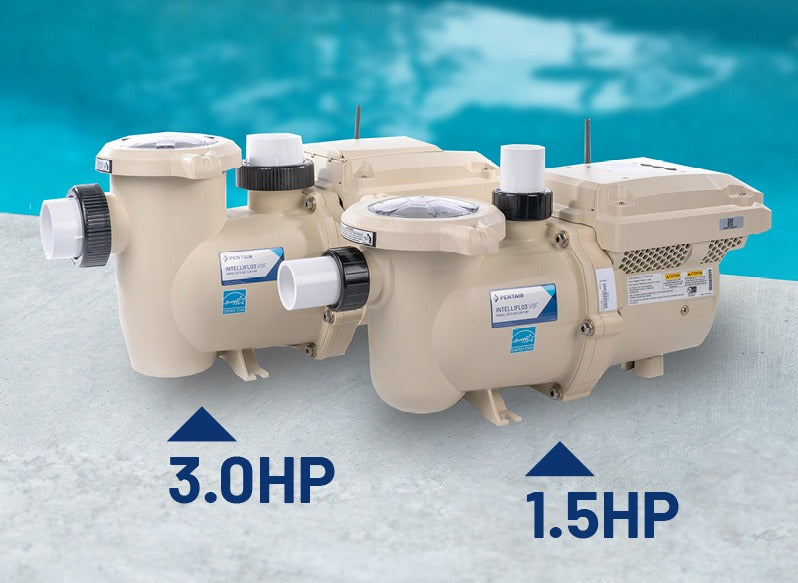

IntelliFlo3® VSF Pump works on nearly all pools*. Available in 2 sizes to meet your pool needs: 1.5 and 3.0 horsepower.
This pump doubles as an automation tool that allows you to connect up to two additional pieces of pool equipment, unlocking control through the easy-to-use Pentair Pool app.
The combination of variable speed and sensorless flow control allows for slower speed and regulated flow to help save you 90%** on energy consumption.
*Based on pump performance, when being used for pool water filtration of up to 93 gallons/minute on system friction curve C, equating to the ability to achieve at least 2 turns per day on pools less than 65,000 gallons in water volume or for water features with flow performance up to 170 gallons per minute at 25 ft of Total Dynamic Head
**Savings based on variable speed pump compared to a single-speed pump running 12 hours per day at an average of $0.16 per kWh In a 20,000-gallon pool. Actual savings may vary based on local utility rates, pool size, pump run time, pump horsepower, pump rpm. plumbing size and length, pump model, service factor and other hydraulic factors. Individual Weighted Energy Factor (WEF) scores and savings may vary by model.
| Item # | DESCRIPTION | THP | WEF | Max Input Voltage | FREQUENCY | Full Load Amps | Port Size (NPT) | Weight (LBS) | CERTIFICATIONS |
|---|---|---|---|---|---|---|---|---|---|
|
011075
|
IntelliFlo3 VSF 3.0 HP
|
3
|
7.1
|
208-230
|
50/60
|
12.4-11.2
|
2" x 2" or 2.5" x 2.5" or 3" x 3"
|
55
|
UL‡, NSF/ANSI 50§
|
|
011076
|
IntelliFlo3 VSF 3.0 HP with I/O board
|
3
|
7.1
|
208-230
|
50/60
|
12.4-11.2
|
2" x 2" or 2.5" x 2.5" or 3" x 3"
|
55
|
UL‡, NSF/ANSI 50§
|
|
011065
|
IntelliFlo3 VSF 1.5 HP
|
1.5
|
9.4
|
115/208-230
|
50/60
|
12/6.4-5.9
|
1.5" x 1.5" or 2" x 2"
|
48
|
UL‡, NSF/ANSI 50§
|
|
011066
|
IntelliFlo3 VSF 1.5 HP with I/O board
|
1.5
|
9.4
|
115/208-230
|
50/60
|
12/6.4-5.9
|
1.5" x 1.5" or 2" x 2"
|
48
|
UL‡, NSF/ANSI 50§
|
|
356159Z
|
IntelliFlo3 VSF Universal Touchscreen Add On
|
|
|
|
|
|
|
|
|
|
356365Z
|
IntelliFlo3 VSF Optional Universal Relay Board Kit
|
|
|
|
|
|
|
|
|
|
357831Z
|
IntelliFlo3 VSF Riser Base Kit
|
1.5
|
|
|
|
|
|
|
|
|
357832Z
|
IntelliFlo3 VSF Riser Base Kit
|
1.5
|
|
|
|
|
|
|
|
|
357833Z
|
IntelliFlo3 VSF Riser Base Kit
|
3.0
|
|
|
|
|
|
|
