HIGH PERFORMANCE COMMERCIAL PUMP

FOR COMMERCIAL SWIMMING POOLS AND OTHER WATER APPLICATIONS

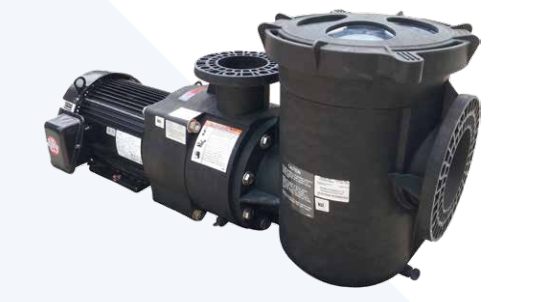

EQ Series Pumps are designed for maximum efficiency and quiet operation in every detail.
They are the only non-corrosive, all-plastic pumps designed for the commercial pool and water applications market. The EQ Series Pump impellers are manufactured for true breakthrough performance, allowing for lower loads and longer motor life. The pumps are available with and without the strainer pot and in flows to 800 GPM and from 3–15 HP.

STANDARD FEATURES
• Close-coupled for quiet, stable flow operation.
• Lightweight for easy, one-man installation.
• Clear Cam and Ramp™ Lid for added service convenience.
• Available in single- and three-phase models. TEFC motor available
three-phase only.
• Closed impeller for long life and durability.
• 6" suction and 4" discharge with strainer pot.
• Great for use with Acu Drive™ XS Variable Frequency Drives.
• Self-priming under NSF standards; NSF Certified.

MATERIALS AND DESIGN
PUMP BODY
Volute type, back pull-out design.
• Port Size
- 6" – ANSI Rated 125 bolted flange suction port1
- 4" – ANSI Rated 125 bolted flange discharge port1
• Material - Volute & Motor Adapter
- PPO Resin
• Impeller
- PPO Resin
• Base
- 6061 aluminum design, slotted for mounting ease.
• Corrosion Prevention
- All-plastic pump for maximum hydraulic performance
and corrosion prevention.

HAIR AND LINT STRAINER
• Material
- Separate bolt-on PPO Resin body with plastic basket, Polycarbonate Resin Thermoplastic lid, and stainless steel bolts.
• Size
- 6" ANSI Rated 125 bolted flange suction and discharge ports.

PUMP MAXIMUM THERMAL LIMITS
- Ambient air temperature: 104˚ F
- Liquid temperature: 104˚ F

MOTOR
Standard JM type. Premium Efficient ODP Class F insulated.
On TEFC options, JMZ type, Premium Efficient, Class F insulated.

• Frame and Size
- NEMA Rated “C” flange.
• Shaft
- 303 stainless steel construction.
• Design
- 3 to 15 HP, 3500 RPM, JM open drip-proof, continuous duty, three-phase and single phase (5, 7-1/2 , 10 HP). 5 to 15 HP, 3500 RPM JMZ TEFC, continuous duty three-phase.
• Bearings
- Double-shielded, single row, deep-groove type, permanently lubricated.
• Thermal Overload Protection
- All models require external thermal overload protector.

ELECTRICAL
• Power Supply Required
- Three-phase pumps are 208–230/460. Single-phase models are available in ODP 230v, 60 Hz only

ENGINEERING SPECIFICATIONS
EQ Series Pump
• Recirculation pump shall be Pentair® EQ Series pump Model No.
____________ self-priming centrifugal pump, _______ phase, 60 Hz.

General Notes
• Install pump in a cool, dry, well-vented location away from pool heaters and chemical storage.
• Pump should be firmly mounted with pipe supported to prevent vibration and undue operational noise.
• Allow 12" minimum clearance behind motor for servicing.
• Motor overheating may be caused by a voltage drop or excessive voltage. Be sure that wire size and voltage input are properly regulated.

Specifications
• The recirculation pump shall be a self-priming, centrifugal design with a hair and lint strainer as shown in the plans.
• The pump body, seal plate, and attached hair and lint strainer shall be constructed of non-corrosive PPO resin materials and close-coupled to an electric motor by means of an adaptor of the same material. The pump body shall have a single suction port with a 6" ANSI Rated 150 bolt flange to the hair and lint strainer. A centerline discharge port of 4" ANSI Rated 150 bolt flange and a winterizing drain port of 1/4" NPT shall be a part of the design.
