ESPA Tecnopres 25

ESPA Tecnopres 25

Dhs. 0.00
Dhs. 0.00
Sold out
Tax included.

Automatic centrifugal multistage pump for water supply.

Automatic pumping of clean water for domestic, industrial, agricultural and gardening purposes. Operation...

17 people are viewing this right now

SKU: ecnopres-ecnopres
Vendor: ESPA
Category: Automatic pressure system
Tags: Automatic pressure system Booster & Pressure Pumps ESPA Homes / villas UAE Water Pump
View full product details

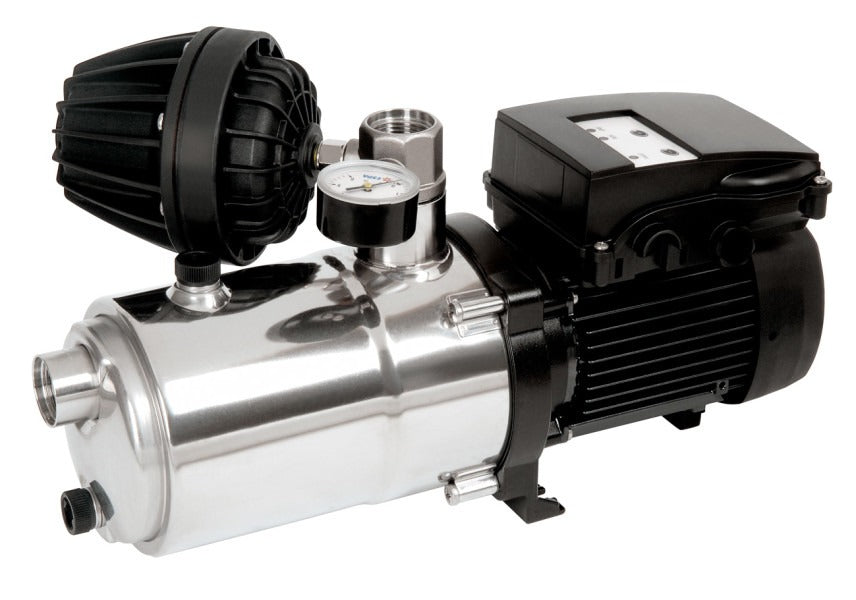

Automatic centrifugal multistage pump for water supply.

Automatic pumping of clean water for domestic, industrial, agricultural and gardening purposes. Operation is automatic start and stop based on water demand. Suitable for applications like sprinkler or drip irrigation, water transfer or domestic booster. Silent. Self-priming up to 2m. Starting pressure 2 bar.

Features Tecnopres 25

Equipment

  • Check valve: Included
  • Pressure gauge: Included

Manufacturing features

  • Discharge connection type: Thread
  • Discharge diameter: 1"
  • Motor cooling: Fan
  • Seal type: Mechanical seal
  • Suction connection type: Thread
  • Suction diameter: 1"

Limitations

  • Maximum suction (m): 2
  • Water temperature (ºC): Max: 40

Electrical features

  • Electrical isolation: F Class
  • Motor type: Asynchronous
  • Protection rating: IPX5
  • Reset: Automatic
  • Service factor: S1

Materials

  • Diffuser/s: Technopolymer
  • Discharge body: Stainless steel AISI 304
  • Impeller/s: Stainless steel AISI 304
  • Mechanical seal: Aluminium-Graphite
  • Motor casing: Aluminium
  • O-rings: NBR/EPDM
  • Pump body: Stainless steel AISI 304
  • Pump shaft: Stainless steel AISI 431
  • Suction body: Stainless steel AISI 304

Electrical data

Single-phase models Intensity [A] Input power P1 [kW] Motor power P2
50 Hz 1~ 230V 1~ [kW] [HP]
TECNOPRES 25 4M 7,00 1,50 0,90 1,21
TECNOPRES 25 5 7,40 1,70 1,10 1,48
