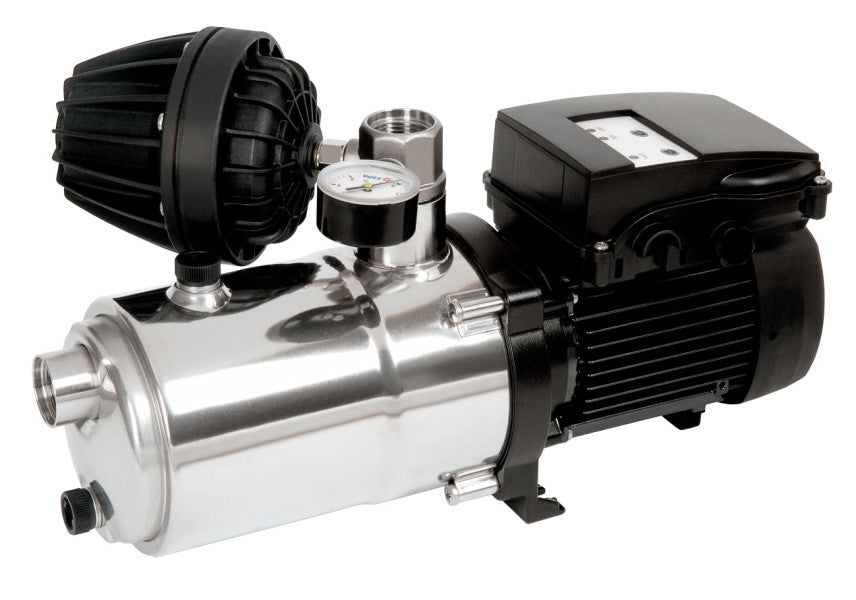

ESPA Tecnoplus 15

ESPA Tecnoplus 15

Regular price Dhs. 0.00
Regular price Sale price Dhs. 0.00
Sold out
Tax included.

Automatic pumping of clean water for domestic, industrial, agricultural and gardening purposes. Operation is variable speed to maintain the constant pressure and flow that apartment,...

16 people are viewing this right now

SKU: ecnoplus-15-ecnoplus-15
Vendor: ESPA
View full product details

Automatic pumping of clean water for domestic, industrial, agricultural and gardening purposes. Operation is variable speed to maintain the constant pressure and flow that apartment, building or installation demands at every moment. Suitable for applications like sprinkler or drip irrigation, water transfer or domestic booster. Silent. Self-priming up to 2m. Adjustable working pressure range from 1,5 to 3,5 bar.



Equipment

  • Check valve: Included
  • Pressure gauge: Included
  • Pressure sensor: Included

Manufacturing features

  • Discharge connection type: Thread
  • Discharge diameter: 1"
  • Motor cooling: Fan
  • Seal type: Mechanical seal
  • Suction connection type: Thread
  • Suction diameter: 1"

Limitations

  • Maximum suction (m): 2
  • Water temperature (ºC): Max: 40

Electrical features

  • Electrical isolation: F Class
  • Motor type: Asynchronous
  • Protection rating: IPX5
  • Reset: Automatic
  • Service factor: S1

Materials

  • Diffuser/s: Technopolymer
  • Discharge body: Stainless steel AISI 304
  • Impeller/s: Stainless steel AISI 304
  • Mechanical seal: Aluminium-Graphite
  • Motor casing: Aluminium
  • O-rings: NBR/EPDM
  • Pump body: Stainless steel AISI 304
  • Pump shaft: Stainless steel AISI 431
  • Suction body: Stainless steel AISI 304
