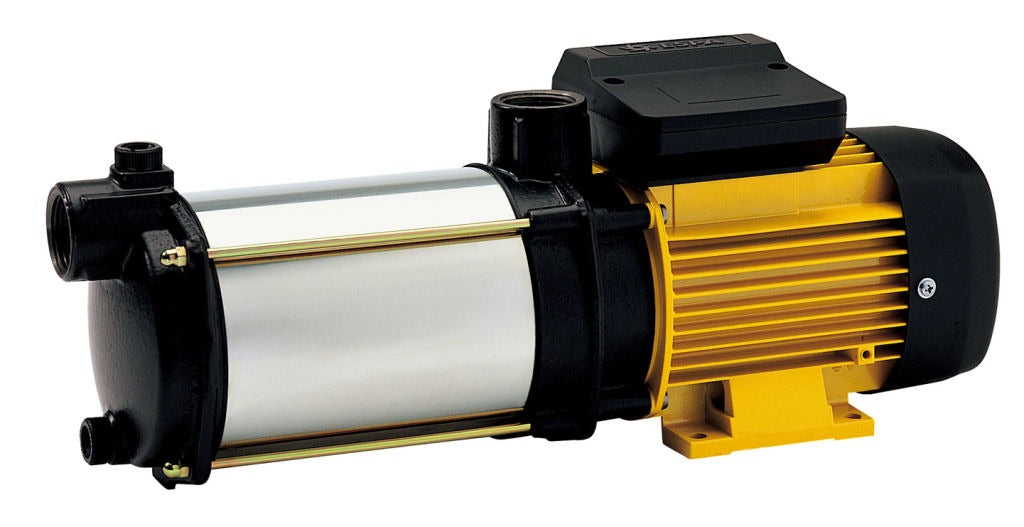

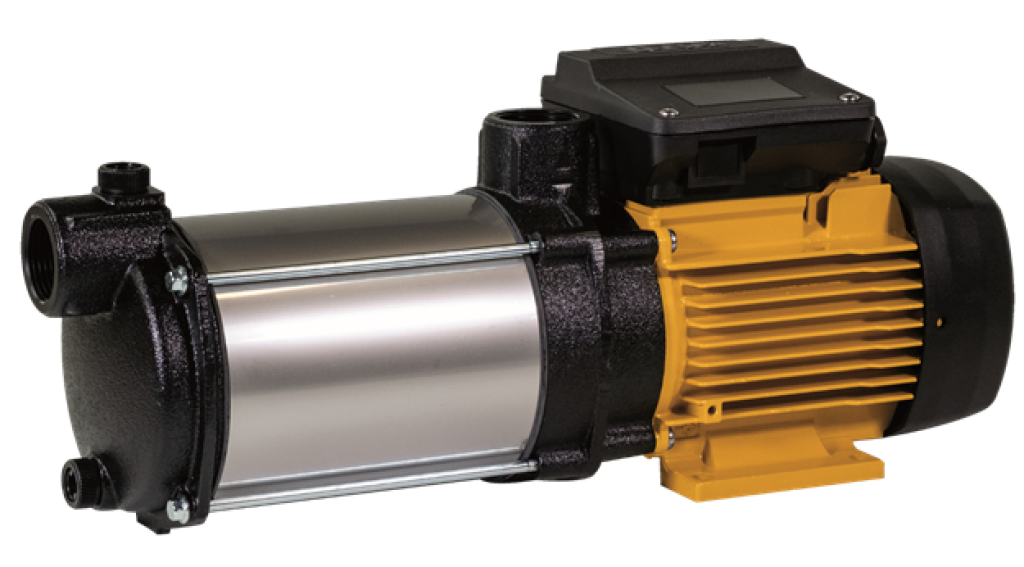

ESPA Prisma 25 3M

ESPA Prisma 25 3M

Dhs. 0.00
Dhs. 0.00
Sold out
Tax included.
PUMP DESCRIPTION

Pumping of clean water for domestic, industrial, agricultural and gardening purposes. Suitable for applications like water transfer, sprinkler or drip irrigation, domestic booster or booster...
24 people are viewing this right now

SKU: 25-3-risma-25-3
Vendor: ESPA
Category: Horizontal multistage pump
Tags: ESPA Horizontal multistage pump Transfer & Centrifugal Pumps UAE Water Pump Water transfer / irrigation
View full product details
PUMP DESCRIPTION

Pumping of clean water for domestic, industrial, agricultural and gardening purposes. Suitable for applications like water transfer, sprinkler or drip irrigation, domestic booster or booster sets. Silent. Self-priming up to 2m


Product information
Maximum height (m) 32
Maximum flow (m3/h) 7
Voltage (V) 230/400
Frequency (Hz) 50
Input power P1 (kW) 1
Intensity (A) 3.5/2
Pressure range (m) 32-12.5
Motor power P2 (kW) 0.75
Maximum working pressure (bar) 12
Number of motor phases three-phase
Number of poles 2
Number of impellers 3
On/off switch No
Plug type without plug
Minimum flow (m3/h) 0.7
Features
Electrical features
Electrical isolation F Class Protection rating IPX5
Motor type Asynchronous Service factor S1
Limitations
Maximum suction (m) 2 Water temperature (ºC) Max: 40

Materials
Mechanical seal Aluminium-Graphite Suction body Cast iron
Pump body Stainless steel AISI 304 Discharge body Cast iron
Diffuser/s Technopolymer Pump shaft Stainless steel AISI 420
Motor casing Aluminium Impeller/s Stainless steel AISI 304
O-rings NBR/EPDM
Manufacturing features
Suction diameter 1" Discharge diameter 1"
Motor cooling Fan Seal type Mechanical seal
Suction connection type Thread Discharge connection type Thread
