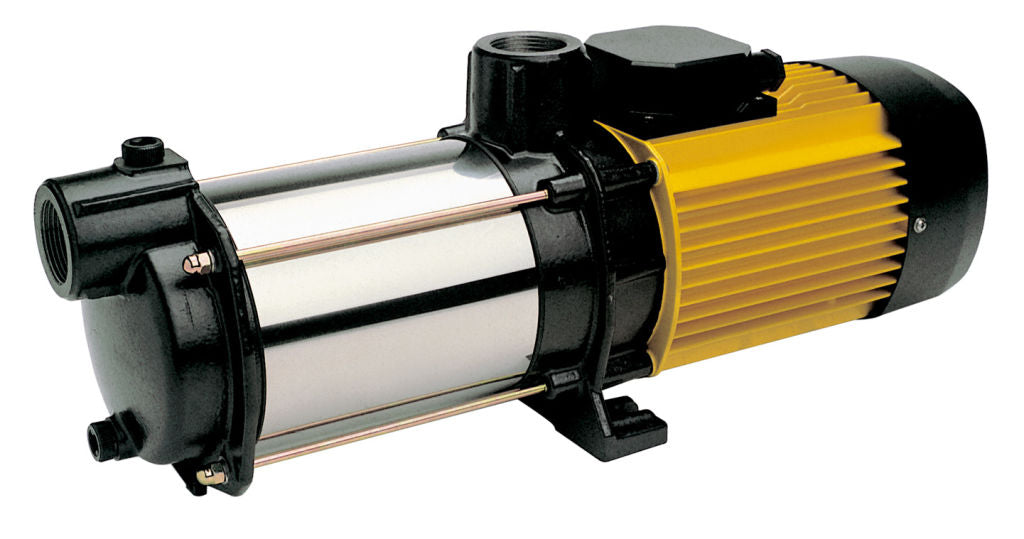

Pumping of clean water for domestic, industrial, agricultural and gardening purposes. Suitable for applications like water transfer, sprinkler or drip irrigation, domestic booster or booster sets. Silent. Self-priming up to 9m.
| Maximum height (m) | 78 |
|---|---|
| Maximum flow (m3/h) | 9.3 |
| Voltage (V) | 230/400 |
| Frequency (Hz) | 50 |
| Input power P1 (kW) | 2.7 |
| Intensity (A) | 8,3/4,8 |
| Pressure range (m) | 78-27 |
| Motor power P2 (kW) | 2.2 |
| Maximum working pressure (bar) | 6 |
| Number of motor phases | three-phase |
| Number of poles | 2 |
| Number of impellers | 6 |
| Plug type | without plug |
| Minimum flow (m3/h) | 0.9 |
| Electrical features | |||
|---|---|---|---|
| Electrical isolation | F Class | Protection rating | IPX5 |
| Reset | Automatic | Motor type | Asynchronous |
| Service factor | S1 | ||
| Limitations | |||
|---|---|---|---|
| Maximum suction (m) | 9 | Water temperature (ºC) | Max: 40 |
| Materials | |||
|---|---|---|---|
| Mechanical seal | Aluminium-Graphite | Suction body | Cast iron |
| Pump body | Stainless steel AISI 304 | Discharge body | Cast iron |
| Diffuser/s | Technopolymer | Pump shaft | Stainless steel AISI 420 |
| Motor casing | Aluminium | Impeller/s | Stainless steel AISI 304 |
| O-rings | NBR/EPDM | ||
| Manufacturing features | |||
|---|---|---|---|
| Suction diameter | 1 1/4" | Discharge diameter | 1 1/4" |
| Motor cooling | Fan | Seal type | Mechanical seal |
| Suction connection type | Thread | Discharge connection type | Thread |
