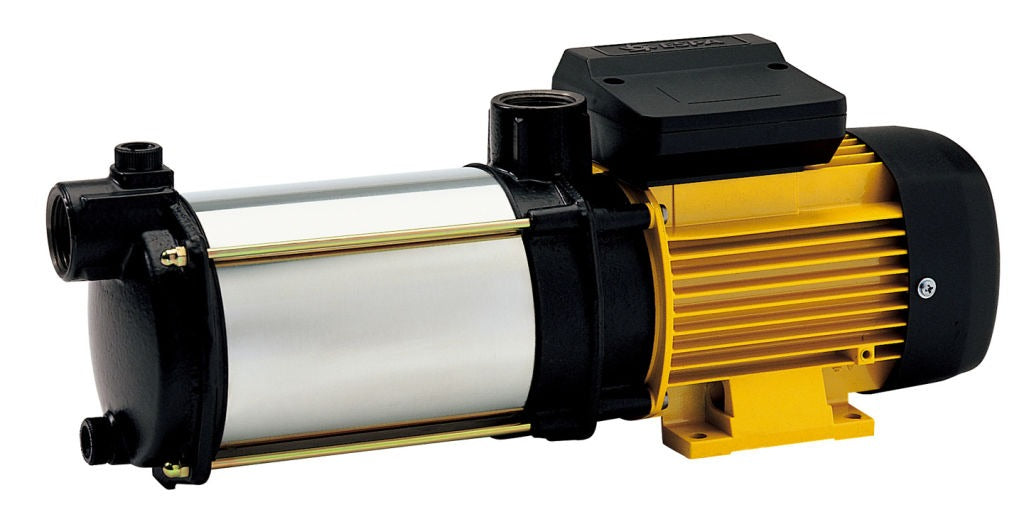

Horizontal centrifugal multistage pump for water supply, self-priming up to 9m.
Pumping of clean water for domestic, industrial, agricultural and gardening purposes. Suitable for applications such as water transfer, sprinkler or drip irrigation, domestic boosters and booster sets. Silent and self-priming up to 9m.
| Maximum height (m) | 43 |
|---|---|
| Maximum flow (m³/h) | 7 |
| Voltage (V) | 230 |
| Frequency (Hz) | 50 |
| Input power P1 (kW) | 1.5 |
| Intensity (A) | 7 |
| Capacitor capacity | 16µF-450V |
| Pressure range (m) | 43–18 |
| Motor power P2 (kW) | 0.9 |
| Maximum working pressure (bar) | 6 |
| Number of motor phases | Single-phase |
| Number of poles | 2 |
| Number of impellers | 4 |
| Plug type | Without plug |
| Minimum flow (m³/h) | 0.7 |
| Electrical isolation | F Class | Protection rating | IPX5 |
|---|---|---|---|
| Reset | Automatic | Motor type | Asynchronous |
| Service factor | S1 |
| Maximum suction (m) | 9 | Water temperature (°C) | Maximum 40 |
|---|
| Mechanical seal | Aluminium-Graphite | Suction body | Cast iron |
|---|---|---|---|
| Pump body | Stainless steel AISI 304 | Discharge body | Cast iron |
| Diffuser/s | Technopolymer | Pump shaft | Stainless steel AISI 420 |
| Motor casing | Aluminium | Impeller/s | Stainless steel AISI 304 |
| O-rings | NBR/EPDM |
| Suction diameter | 1" | Discharge diameter | 1" |
|---|---|---|---|
| Motor cooling | Fan | Seal type | Mechanical seal |
| Suction connection type | Thread | Discharge connection type | Thread |
