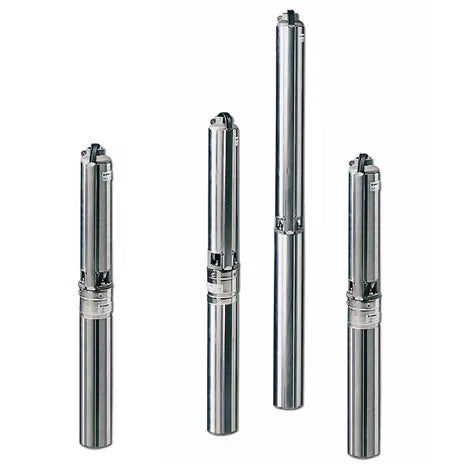

The e-GS series is a robust 4” pump designed for long life. It’s built mainly in stainless steel, has casted discharge and a special floating impeller design to enhance the wear resistance and to maintain the performance over time.
The e-GS series is designed specially to be used in 4” wells and its ideal for use in irrigation systems, pressure boosting, geothermal systems and fountain applications.
All e-GS pumps can be coupled to 4” NEMA standard motors.
| General Specification |
e-GS Submersible pumps for 4” wells |
| Delivery |
up to 22 m³/h |
| Head |
up to 310 m |
| Power supply |
both single and three-phase 50 and 60 Hz |
| Power |
from 0.25 kW up to 7.50 kW |
| Temperature of pumped liquid |
to 35°C |
| Maximum immersion depth |
300 m |
