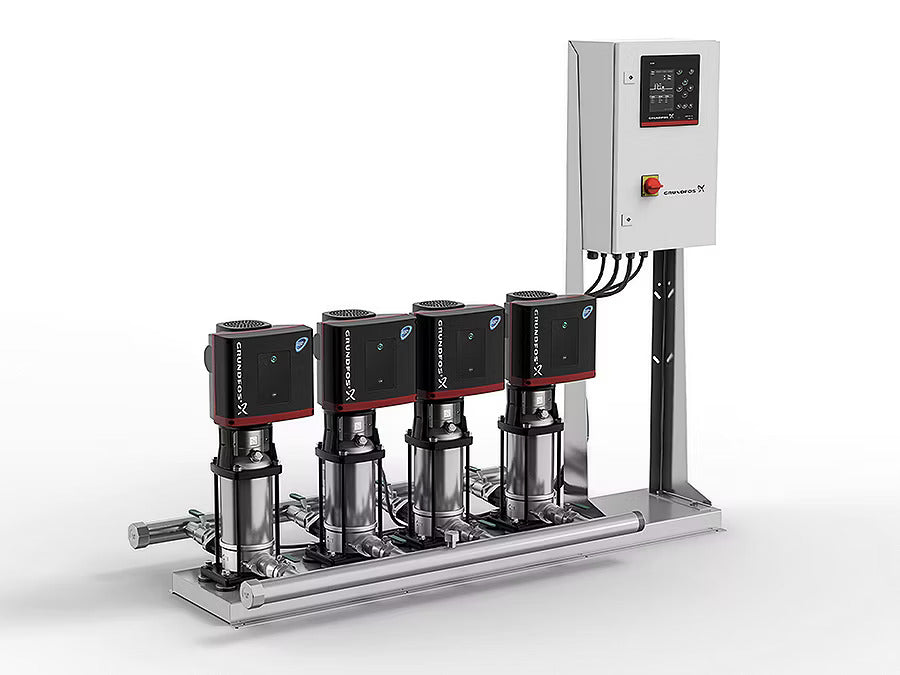

Grundfos Hydro MPC systems come as complete units of superior quality, designed to provide boosting wherever additional pressure is needed. They are built on the world’s number one multistage centrifugal pumps – the highly renowned CR and CRE pumps. The CR and CRE pumps are known for their reliability, efficiency and adaptability and form the perfect base for the Grundfos booster systems. Every component in our systems is Grundfos made which means that you are guaranteed long lasting technology that requires a minimum of maintenance and provides a maximum of efficiency.

BENEFITS
• Intelligent cascade control ensures that the optimum number of pumps required to meet the demand operate at any time
• CR pumps with IE3 motors for the most energy-efficient solution available for constant pressure during changing flow demands
• Grundfos MPC controller handles even the most difficult boosting jobs with ease and accuracy

TECHNICAL DATA
• 2 to 6 pumps
• Motor size: 0.55 to 75 kW
• Flow rate (Q): 1080 m3/h
• Head (H): 146 m
• Liquid temperature: 0 °C to +70 C
• Discharge diameter: Up to DN 350
• Enclosure class: IP 54
• Maximum system pressure: PN16 (standard) (up to PN 40 on request)
• Maximum hydraulic efficiency: 80 %
• Ambient: 0 °C to +40 °C

APPLICATIONS
• RAW WATER INTAKE
• DRINKING WATER TREATMENT
• WATER DISTRIBUTION
