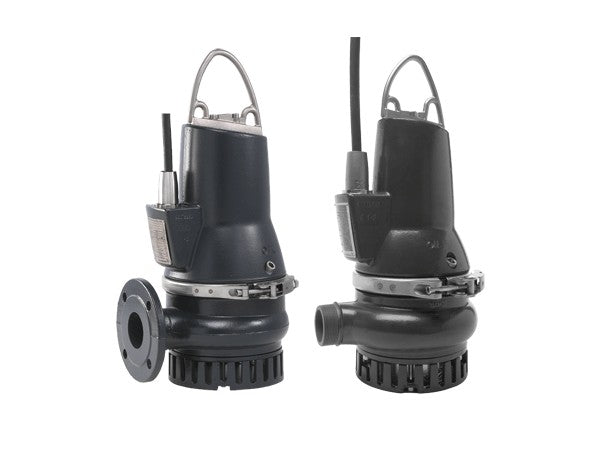

GRUNDFOS DP pump is a portable pump for both domestic and industrial applications.
The pump has a multi-vane, semi-open impeller for 10 mm free passage and is suitable for pumping
• drainage and surface water
• groundwater
• industrial process water without solids and fibres.

The compact design makes the pump suitable for both temporary and permanent installation. The pump is a cast iron submersible pump with integrated submersible 3-phase motor.

 Approvals: LGA

The pump has an intermediate oil chamber pre-filled with non-toxic special oil.
The pump is fitted with a cable plug for easy dismantling. This plug is hermetically sealed with polyurethane to prevent water from penetrating through the cable into the motor.
A clamp between pump housing and motor ensures easy and safe dismantling and assembly. Inspection can be done in the field without any special tools. The pump is fitted with a double shaft seal in the unique cartridge design. This makes it easy to replace the shaft seal very quickly in the field without any special tools. It also eliminates the risk of faulty installation.
The motor is insulation class F and has long-life, deep-groove, greased-for-life ball bearings.
The pump has DN 65 discharge port and is ready for installation either free-standing or on an auto-coupling system.

Controls:
Moisture sensor: without moisture sensors
Water-in-oil sensor: without water-in-oil sensor
AUTOADAPT: No

Liquid:
Liquid temperature range: 0 .. 40 °C
Selected liquid temperature: 20 °C
Density: 998.2 kg/m³

Technical:
Rated flow: 8.09 l/s
Maximum flow: 12.8 l/s
Rated head: 17.96 m
Type of impeller: SEMI OPEN
Max. Particle: 10 mm
Primary shaft seal: SiC/SiC
Max. hydraulic efficiency: 63 %
Approvals: LGA
Curve tolerance: ISO9906:2012 3B2
