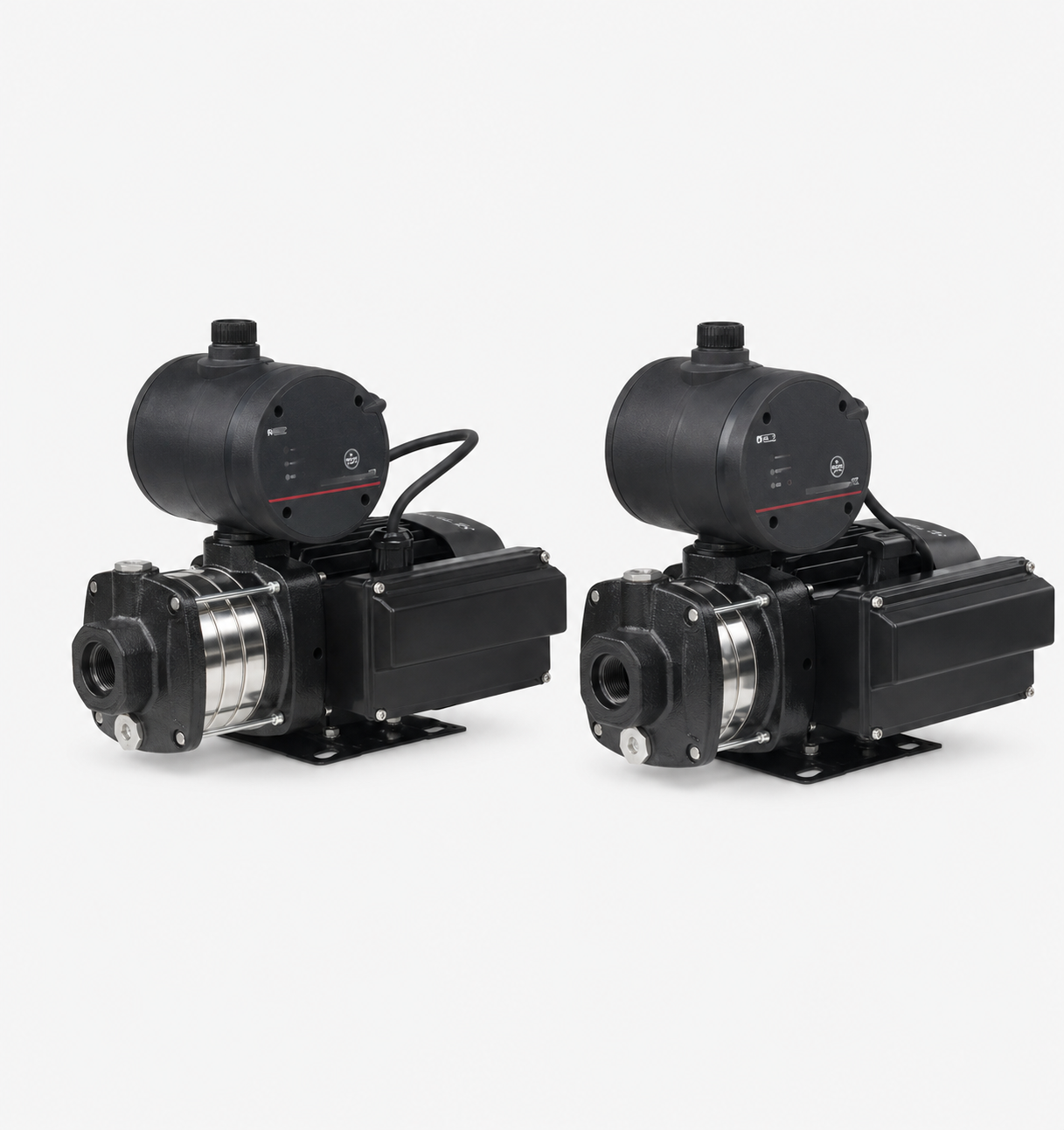

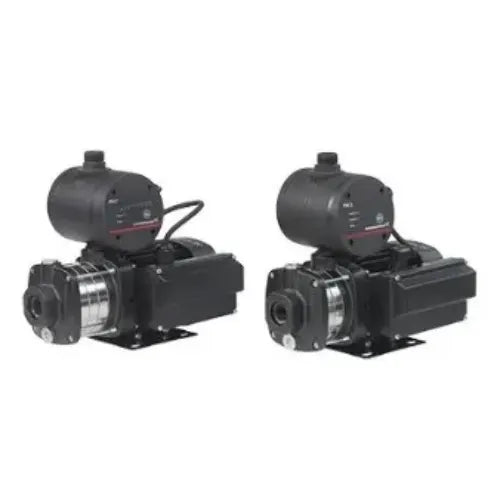

CMBE TWIN is a high-efficiency booster system comprising two Grundfos CMBE boosters connected in parallel. It is well-suited for clean water supply and pressure boosting in both domestic and commercial settings.

Duty Range

• Max flow: 15 m³/h
• Head max: 102 m
• Liquid temperature: 0 .. 60 °C
• p max: 10 bar

Model

• CMBE TWIN 5-62
• CMBE TWIN 3-93
• CMBE TWIN 3-62

Features

• Constant pressure via integrated speed control
• Cascade control and pump alternation
• Dry-running protection
• Compact
• Robust, stainless steel design
• Easy installation
• Low energy consumption
• Noise level < 55 dB(A) and even lower at controlled
  speed.

Dimensions

Performance Curve
